43" VESA Mounted Multi Touch Panel PC , Industrial Panel PC Touch Screen

Name: 43quot VESA Mounted Multi Touch Panel PC Industrial Panel PC Touch Screen
Brand: ITD/OEM
Price: 1 USD

Quality 43" VESA Mounted Multi Touch Panel PC , Industrial Panel PC Touch Screen wholesale

Brand Name : ITD/OEM

Model Number : ITD43PPCT5LJ1

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 5-15 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm

CPU : Intel J1900/i3/i5/i7/Android

Active are : 941.184(H)×529.416(V) mm

Screen Diagonal : 43"

Operating Temperature : -10~60℃(-20~70℃ optional)

Operating Humidity : 10%-90% (Non Condensing)

24/7/365 Use : Supported

Touchscreen : PCAP,IR

View Angels : 89/89/89/89

Connector : HDMI/VGA/DVI,USB,RS232,LAN,AUDIO,MIC

Backlight : LED Backlight with 50000Hours'Lifetime

Contact Now

43" VESA Mounted Multi Touch Panel PC , Industrial Panel PC Touch Screen

ITD industrial touch panel PC-based HMIs offers many benefits including: cost reduction, a lightweight frame, high dimensional stability, superior corrosion resistance, improved mechanical properties, high thermal and electrical conductivity, and the ability to retain strength at high temperatures.

Specifications:

Chassis Panel PC
Model Name		ITD43PPCG1L**
IP Rating		IP65 Front Panel Optional
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® NM10 Express		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		43”
Display Active Screen Size (cm)		941.184(H)×529.416(V)
Aspect Ratio		16:9
Physical Resolution		1920×1080
Maximum Resolution Supported		1920×1080
Colors		16.7M
Brightness (cd/m²)		400
Contrast Ratio		1200:1
View Angels		89/89/89/89
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		0~50°C (-10~60°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		Internal Power Supply, AC 100V~240V
Power Consumption		151.25W
Order Information
43”Chassis Panel PC with Resistive Touch, J1900		ITD43PPCT1LJ1
43”Chassis Panel PC with PCAP Touch, J1900		ITD43PPCT5LJ1
43”Chassis Panel PC with IR Touch, J1900		ITD43PPCT2LJ1
43”Chassis Panel PC with Tempered Glass, J1900		ITD43PPCG1LJ1
43”Chassis Panel PC with Resistive Touch, i5		ITD43PPCT1LI5
43”Chassis Panel PC with PCAP Touch, i5		ITD43PPCT5LI5
43”Chassis Panel PC with IR Touch, i5		ITD43PPCT2LJ1
43”Chassis Panel PC with Tempered Glass, i5		ITD43PPCG1LI5

43" VESA Mounted Multi Touch Panel PC , Industrial Panel PC Touch Screen

APPLICATION

Product Tags:

touch panel computer

touch monitor pc

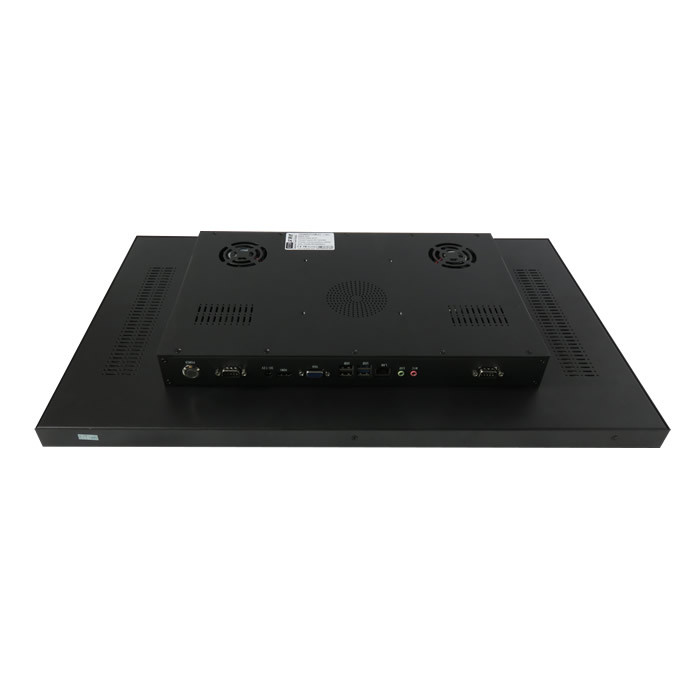

43" VESA Mounted Multi Touch Panel PC , Industrial Panel PC Touch Screen Images
